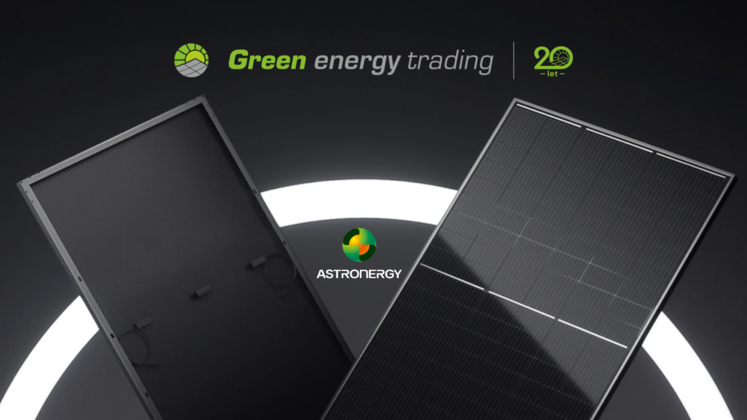

Astronergy: the future of solar energy

Astronergy is a manufacturing company specialising in photovoltaic cells and modules. Founded in 2006, it is one of the earliest private companies in China to enter the photovoltaic field. It is also the pioneer of n-type TOPCon PV modules. In addition, their production uses intelligent production lines.

It focuses on the research and development, production and sales of high-efficiency crystalline silicon PV cells and PV modules, and continuously launches the ASTRO series modules, which are characterized by high efficiency, quality and performance.

Both bifacial and monofacial modules of the ASTRO series using large wafers can be ideally applied in various scenarios of large-scale power plants, commercial and industrial PV systems, and residential PV systems.

Astronergy has been a pioneer in the introduction of mass production of n-type TOPCon PV modules and continues to maintain its lead in n-type TOPCon technology.

ASTRO 5 Series
Astronergy's ASTRO 5 product line includes monocrystalline modules with high power ratings and impressive module efficiencies. They are characterized by uncompromising quality, reliability and guaranteed performance. In addition, all modules have an exclusively positive power tolerance upon delivery.

ASTRO 5 panels use TOPCon n-type 4.0 photovoltaic cells and boast a better temperature coefficient as well as better low-radiation performance.

Astronergy CHSM72N(DG)/F-BH 585 SF
The Astronergy ASTRO 5 product line includes single crystal modules with high power ratings and impressive module efficiencies.
The Astronergy CHSM72N(DG)/F-BH 585 SF solar panel has an output of 585 Wp and an efficiency of 22.65%. The panel consists of 144 cells and uses TOPCon, Half-cut technology.
Its advantages include low temperature coefficient (Pmpp) and low BOS and LCOE.
Product warranty 15 years, performance warranty 30 years.

Width: 113.40 cm
Height:227.80 cm
Depth: 3.00 cm
Technology:TOPCon
Panel Type:Mono

ASTRO 7s Serie
Astronergy has introduced the world's first ZBB (Zero BusBar Interconnection Technology) - TF (Tiling Film) production technology and has also received the first TÜV Rheinland certification for it.

ASTRO N7s modules use ZBB-TF technology. Thanks to it, these solar panels achieve an efficiency of up to 23.02%, which is the highest efficiency to date among conventional residential panels, for which this new technology is primarily intended.

The absence of bus bars, together with a protective film that not only provides protection against hidden cracks on the panel surface, also creates an elegant all-black appearance.

ASTRO N7s solar panels also have higher bifaciality, lower LID & LETID, higher reliability, superior low irradiance performance and higher power per watt.

Astronergy CHSM54RNs(DG)/F-BH 450 FB
Astronergy photovoltaic modules are characterized by uncompromising quality, reliability and guaranteed performance. In addition, all modules have an exclusively positive power tolerance upon delivery.
The CHSM54RNs(DG)(BLH)/F-BH 450 FB is a 450Wp solar panel with an efficiency of 22.5%.
It uses TOPCon technology.Elegant crystalline black appearance that blends seamlessly with rooftops.

Width: 113.40 cm
Height:176.20 cm
Depth: 3.00 cm
Technology: TOPCon
Panel Type: Bifacial

Astronergy reference projects

Location: Holy Cross Laundry, Australia
Capacity: 437.95kW

Description: The installation of this solar system has brought significant and far-reaching benefits to Holy Cross Laundry. The solar installation is expected to reduce carbon dioxide emissions by 433 tons per year, contributing significantly to a cleaner and more sustainable environment. In addition to its environmental impact, the system is expected to generate annual energy savings of $109,782, demonstrating the financial benefits of implementing solar energy.

Location: Quzhou, Zhejiang Province, China
Capacity: 4 MW

Description: Photovoltaic panels are installed on more than 800 houses, with a total capacity of 4 MW and annual energy production exceeding 4 million kWh. The installation is known as the "Zhejiang Province Million Photovoltaic Roofs Project."

Location: Döllen, Germany
Capacity: 154.4 MW

Description: The 154.4 MW Döllen solar farm, the largest n-TOPCon solar farm in Europe, is located in Germany. Construction of the project began in May 2022 and was completed in April 2023, when it was connected to the power grid.
Thanks to the installation of 154.4 MW of ASTRO N 5 series n-type TOPCon photovoltaic modules, the 154.77 MW solar farm is expected to generate approximately 160,000 MWh of green electricity per year. This output corresponds to supplying approximately 36,000 four-person households with sustainable electricity.

Location: Bulgaria, Terasol
Capacity: 110 MW

Description: The Bulgarian solar park Terasol 110 MW is equipped with 218,240 modules of the ASTRO 5 n-type TOPCon series. The project represents a boom in solar energy on the Bulgarian market, enabling the supply of green electricity to end users.
The ASTRO 5 module design and 25-year linear performance warranty ensure long-term stable solar energy production from the project, which is expected to generate an average of 148,744 MWh per year.
